SIP Horn Speaker
Paging | Announcement | Public Address

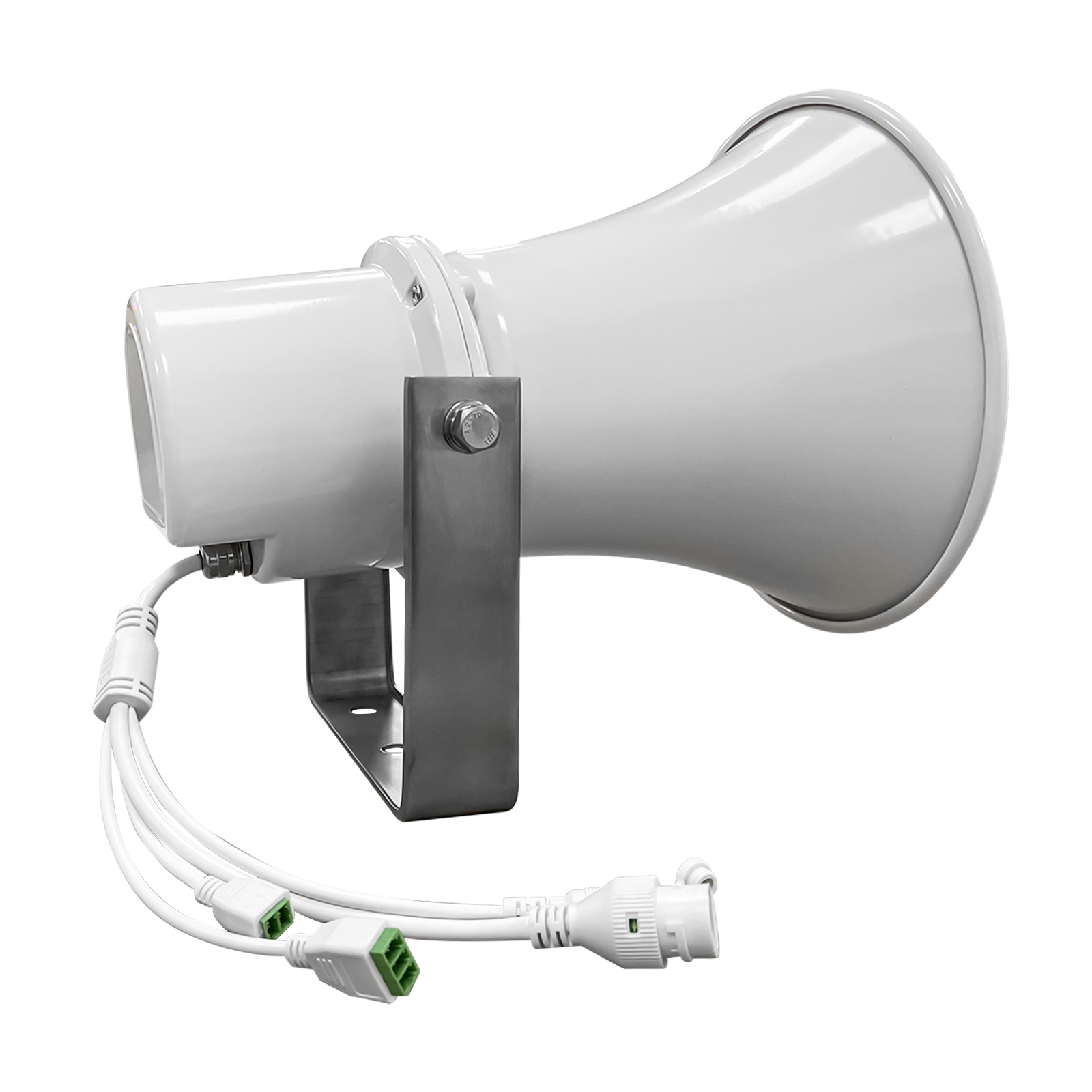

SIP Horn Speaker
Powerful and reliable IP-based voice communication engineered for outdoor and industrial environments[cite: 2]. Powered by SIP-based communication technology, it seamlessly integrates with IP-PBX systems, ONVIF surveillance platforms, and centralized paging solutions for live announcements and emergency broadcasts[cite: 2].
The Neron SIP Horn Speaker delivers powerful, intelligible IP audio for mission-critical public address, scheduled notifications, and emergency broadcasts[cite: 2]. Its horn-shaped acoustic profile ensures directional sound projection across expansive outdoor and high-noise facilities[cite: 2].
Designed for plug-and-play network deployment, it supports standard SIP accounts to register seamlessly with any IP-PBX or unified communication system[cite: 2, 3]. With integrated ONVIF compatibility, external trigger inputs via Phoenix terminals, and MQTT API support, it enables automated visual and voice security workflows across industrial, commercial, and public infrastructure[cite: 2, 3].
Key Features:| Parameters | PAS-H15P | PAS-H30P | PAS-H60 |
|---|---|---|---|
| Amplifier | Class D 15W | Class D 30W | Class D 60W |
| Speaker Component | 1.3" Mid-High Frequency Driver | 1.5" High-Frequency Driver | 1.5" Mid-Frequency Driver |
| Sensitivity (1m/1W/1KHz) | 113 dB | 115 dB | 116 dB |
| Max Sound Pressure Level (SPL) | 124 dB | 129 dB | 133 dB |
| Rated Power | DC: 8Ω 15W | PoE: af-8Ω 8W / at-8Ω 15W | DC: 8Ω 30W | PoE: af-8Ω 8W / at-8Ω 20W | DC: 4Ω 60W |
| Frequency Range | 300 Hz – 10 kHz | 300 Hz – 10 kHz | 380 Hz – 10 kHz |
| Coverage Angle & Distance | 119° H × 119° V (150 m effective) | 78° H × 78° V (200 m effective) | 78° H × 78° V (300 m effective) |
| Audio Codecs | G.722, G.711 A-law, G.711 U-law, Opus (Mono) | ||
| Audio Streaming | MP3 sampling rate 8–48 kHz, bit rate 64–320 kbps (Mono or Stereo) | ||
| SIP Accounts | 3 SIP Accounts | ||
| Ethernet Interface | 10/100 Mbps RJ45 (Waterproof), PoE IEEE 802.3af/at | ||
| Auxiliary Terminals | 1x 3-pin 3.81mm Phoenix terminal (Dry Contacts), 1x 2-pin 3.81mm Phoenix terminal (Switch) | ||
| Power Interface | PoE IEEE 802.3af/at standard adaptive or DC Female interface (5.5*2.1mm, 24V-2A) | ||
| Memory | 128 MB RAM, 256 MB Flash | ||
| Network Protocols | SIP (RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH | ||
| Administration & API | Web Interface, Auto-Provisioning Server, MQTT API | ||
| Dimensions & Weight | Ø200 × 235 mm | 1.75 kg | Ø246 × 292 mm | 2.25 kg | Ø325 × 350 mm | 2.65 kg |
| Enclosure & Color | Iron + ABS + Aluminum-Alloy Grille | White | ||
| Mounting & Protection | Wall / Pole mounted | IP66 Weatherproof | ||
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) | Humidity: 10%–95% RH Non-condensing | ||
| Warranty | 2 Years | ||
Industrial Facilities
Broadcast operational shift changes, clear audio safety instructions, and alert plant workers in noisy areas.
Educational Institutions
Campus-wide public address, daily bell schedules, routine announcements, and campus security notifications.
Corporate & Perimeter Security
Direct integration with ONVIF camera systems for automated perimeter intrusion warnings and real-time talk-down.
Transportation & Parking
Clear passenger information across open platforms, bus terminals, logistics bays, and multi-level parking decks.
